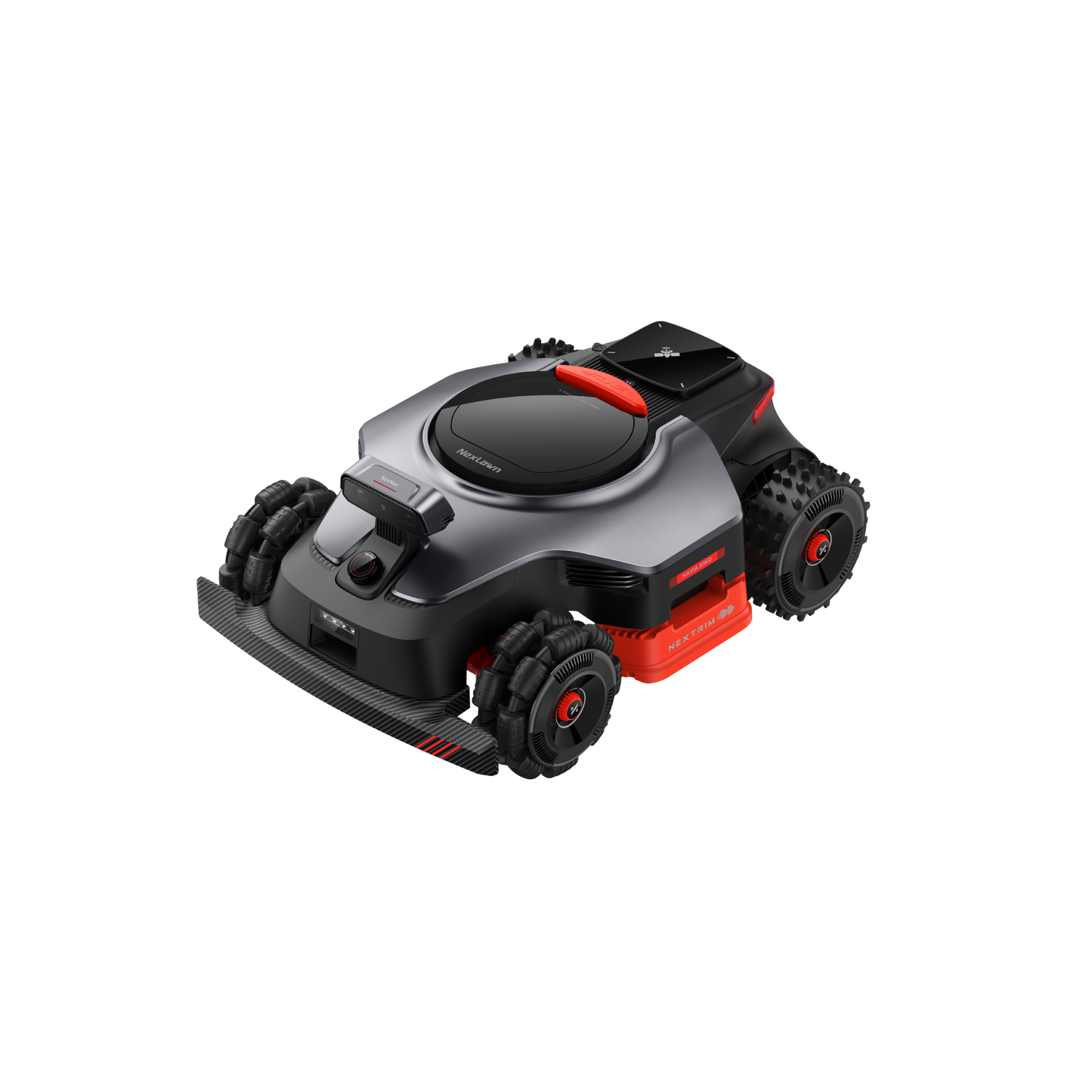

NAVIA AWD Series Robotic Lawn Mower

Name: NAVIA AWD Series Robotic Lawn Mower
Brand: NexLawn
Availability: OutOfStock

Tailored for large lawns, NAVIA AWD Series features NexNav™ Integrated Positioning—fusing NRTK, AI Stereo Vision and 360° LiDAR—to deliver real-time positioning and flawless mowing, no signal worries. 4WD with suspension and four hub motors tackle 80% slopes and rough terrain effortlessly. A 36V battery and 40cm 6-blade dual floating discs ensure efficient cutting, while NexTrim™ trims edges to within 3cm of leftover grass. Manage zones, maps, and security features through the App. Choose NAVIA AWD Series for intelligent, tech-powered yard care.

NexNav™ Integrated Positioning Technology

NexDrive™ 4WD for 80% Slopes & Tough Terrains

NexTrim™ Cuts Edges within 3cm Precision

36V Power + 40cm Dual Discs for Efficiency

Learn More

View full details

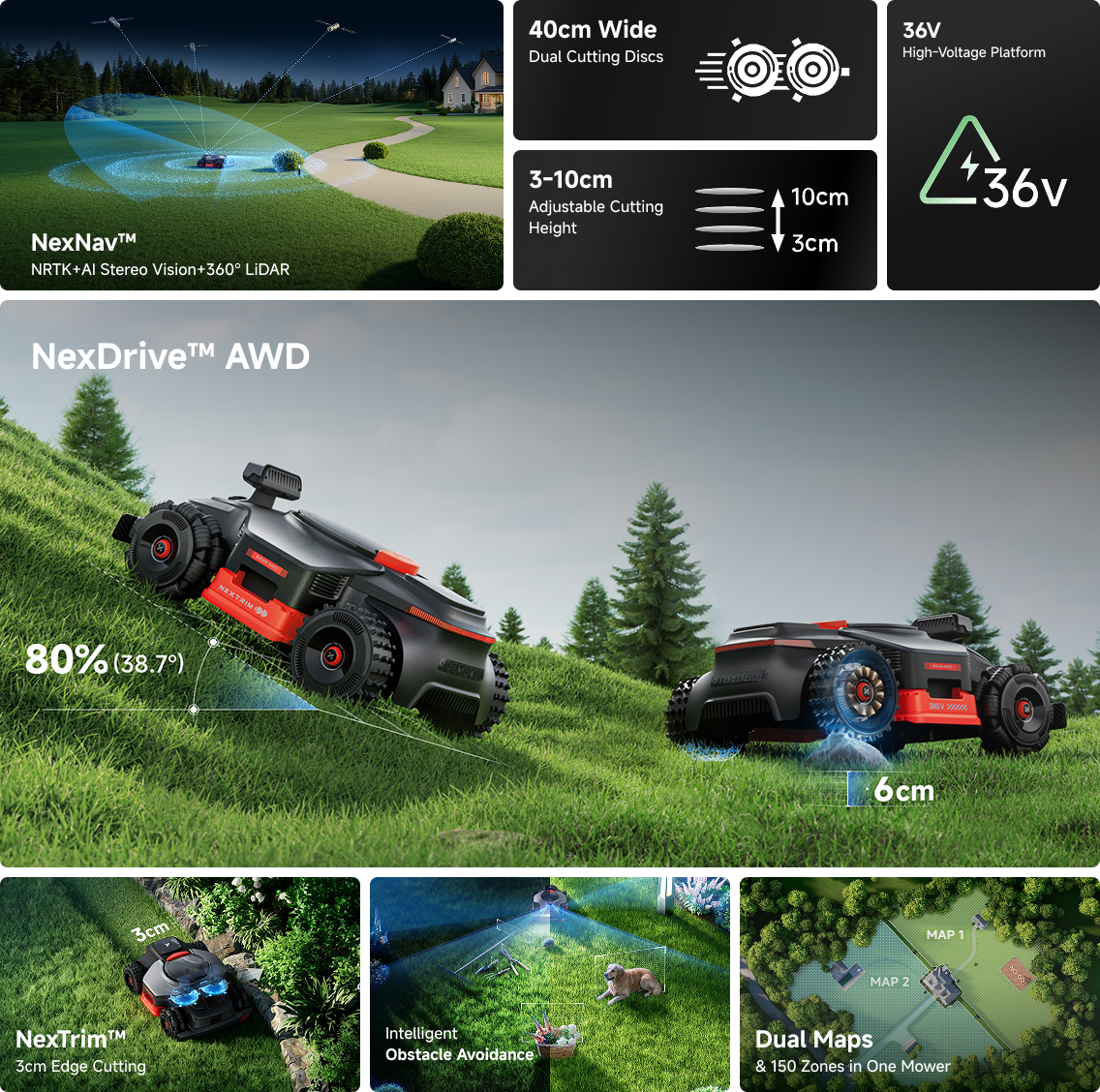

Next-Gen Mowing, Redefined.

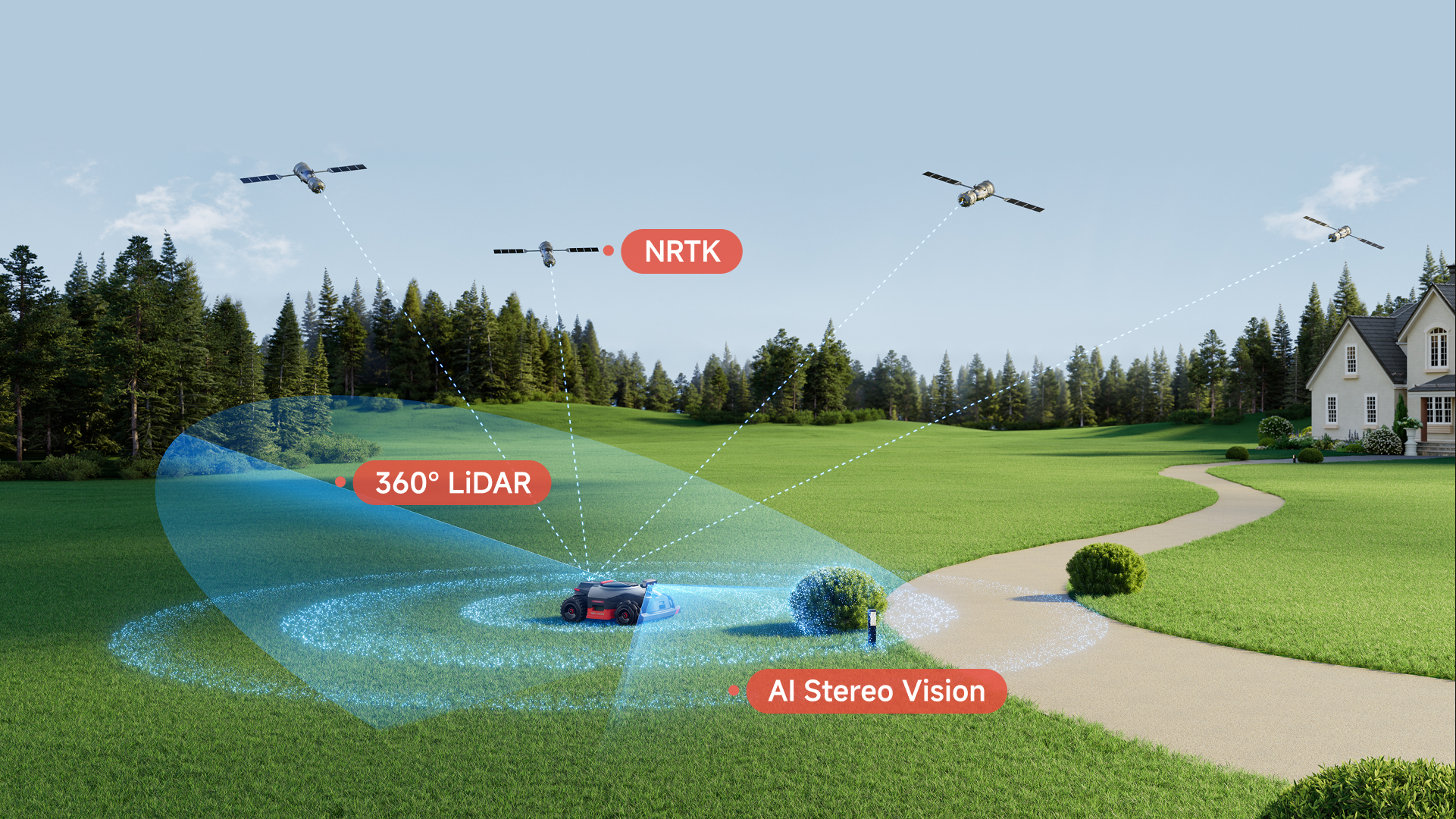

NexNav™: Multi-Fusion for Precise Positioning

NexNav™ combines NRTK real-time positioning, AI Stereo Vision, and 360° LiDAR to provide centimetre-level accuracy and intelligent environmental awareness for thorough coverage and calculable precision.

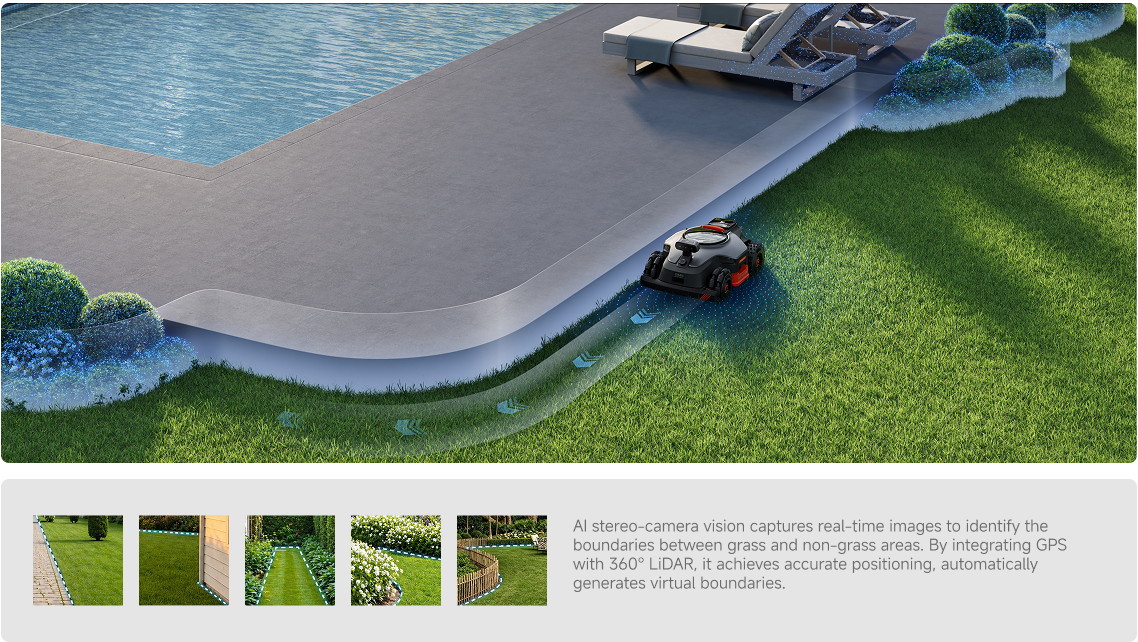

AI-Assisted Auto Mapping

Reliable Sensing under Challenging Conditions

The mower maintains stable operation in varying lighting conditions, including day and night, around obstacles such as trees and eaves, and across different lawn terrains. This feature reduces wandering, shutdowns, and missed or repeated mowing.

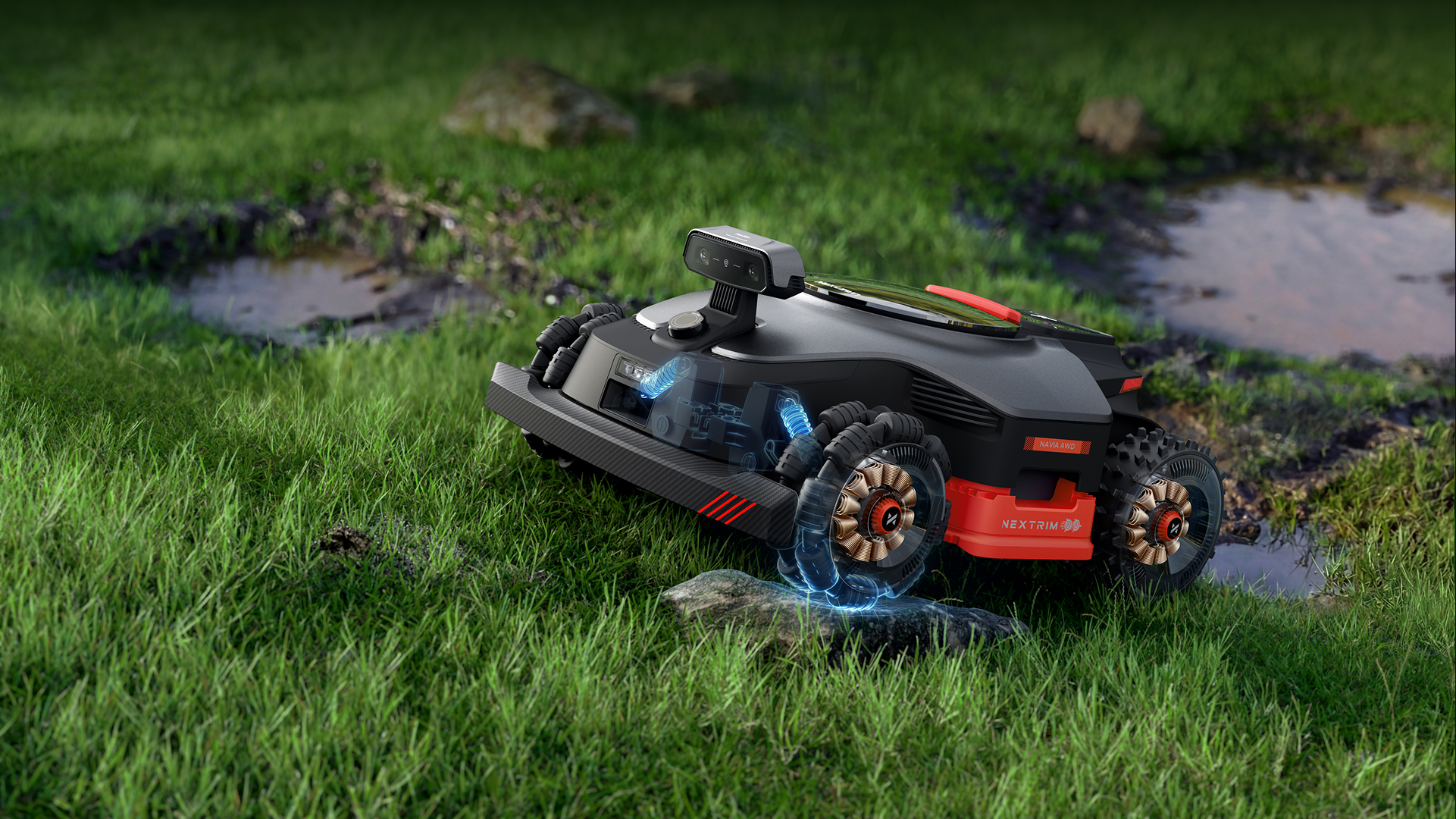

Master Complex Terrains with 4WD Design

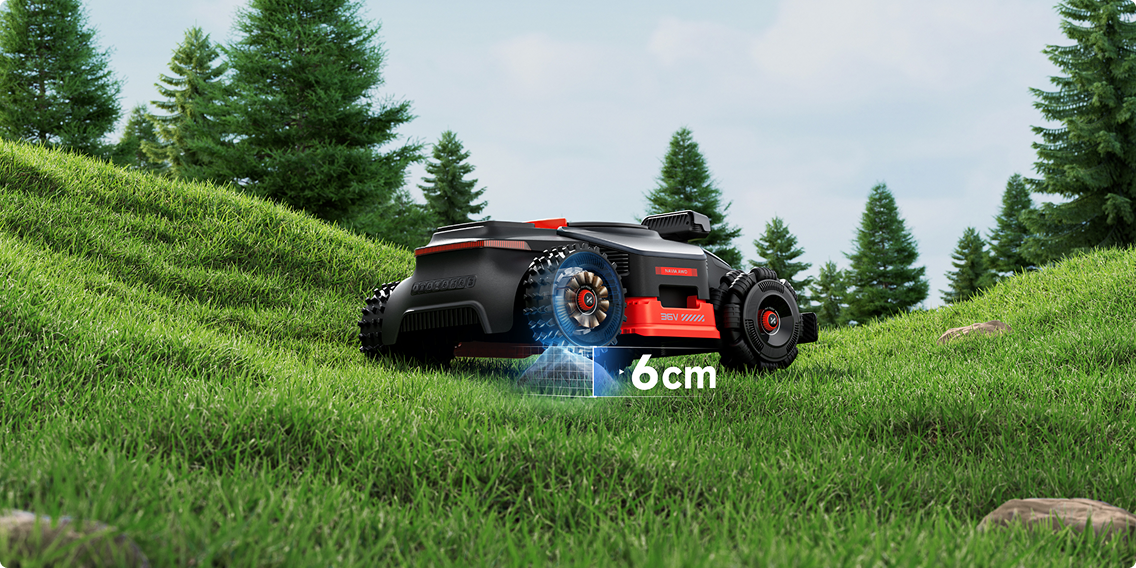

With its 4WD design, the mower climbs slopes up to 80% (38.7°)* and overcomes obstacles up to 6cm*, effortlessly navigating large lawns.

Four-Wheel Drive

Superior performance on wet or thick grass and mildly muddy terrain

Omnidirectional Wheels

Outstanding mobility with zero* turning radius

Independent Air Suspension

Absorbs shocks to maintain stability and minimize vibration

Off-Road Rear Wheels

Conform to the lawn surface for enhanced traction and grip

NexTrim™ Trims Edges to 3cm

When trimming uneven edges—such as along walls—it cuts close to the edge, using outward-extended discs to leave a strip of grass at least 3cm* wide.

When the boundary is level with the grass, it rides directly* on the boundary line for accurate cutting, leaving flawlessly neat and well-defined lawn edges.

40cm Wide Dual Cutting Discs for Various Grass Conditions

Featuring dual 40cm cutting discs with six blades per disc, the mower delivers efficient full-width coverage and a smooth, even finish across a wide range of lawn conditions.

36V High-Voltage Platform for Efficient Mowing

Powered by a 36V high-voltage platform and a 324Wh large-capacity battery pack, the NAVIA 5500 AWD delivers exceptional efficiency for fast, high-output mowing.

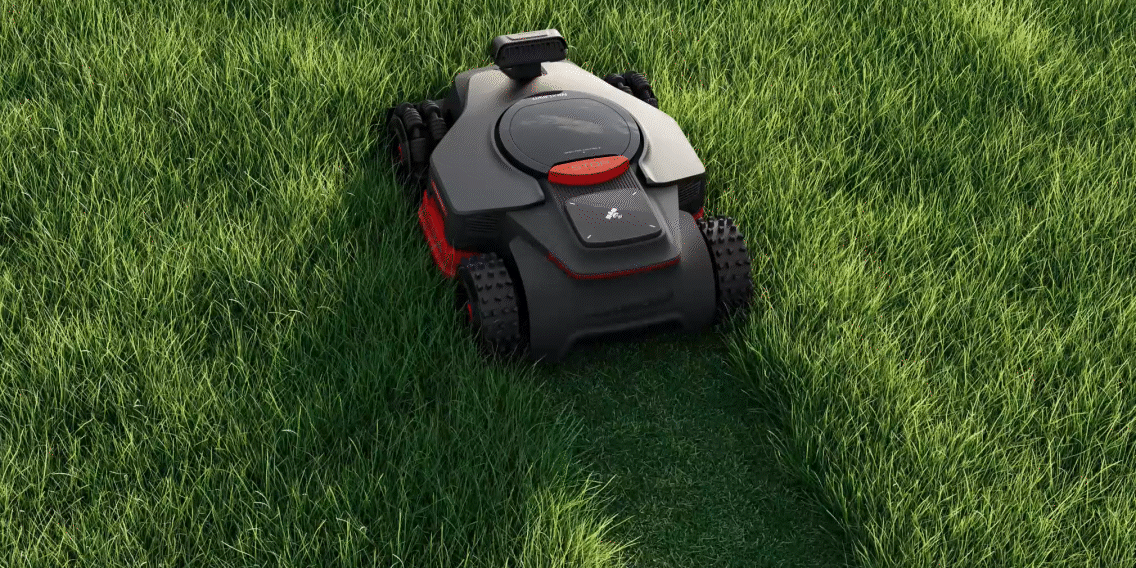

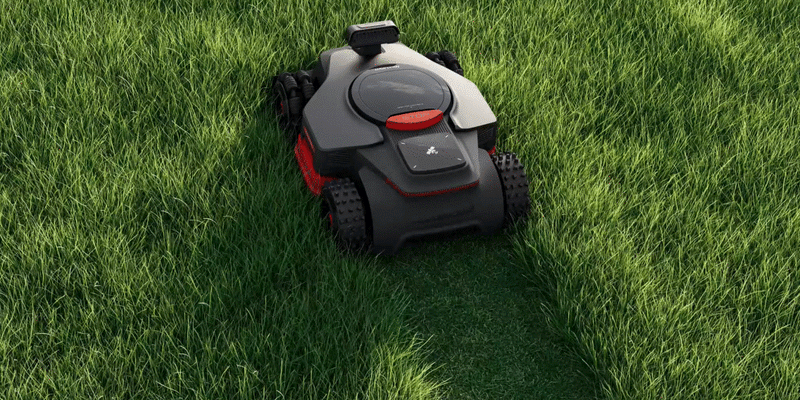

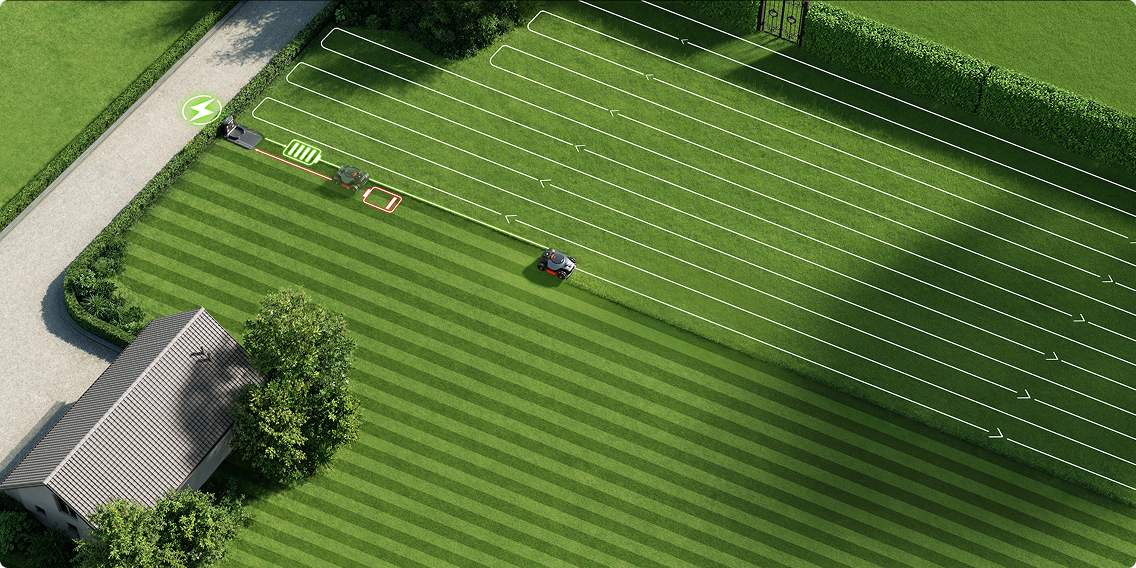

U-Shaped Mowing for Full Coverage

The mower follows a systematic U-shaped mowing path to deliver thorough lawn coverage and a uniform, refined finish. After charging, it automatically resumes from the exact point where mowing stopped.

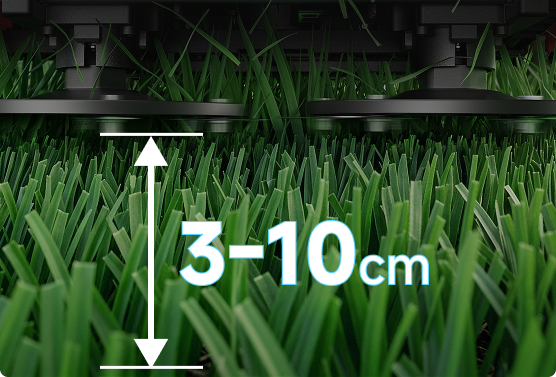

3-10cm Adjustable Cutting Height via App

The NAVIA 5500 AWD offers an adjustable cutting height from 3 to 10cm. With the NexLawn App, you can remotely set the cutting height based on seasonal conditions, lawn types, and grass species.

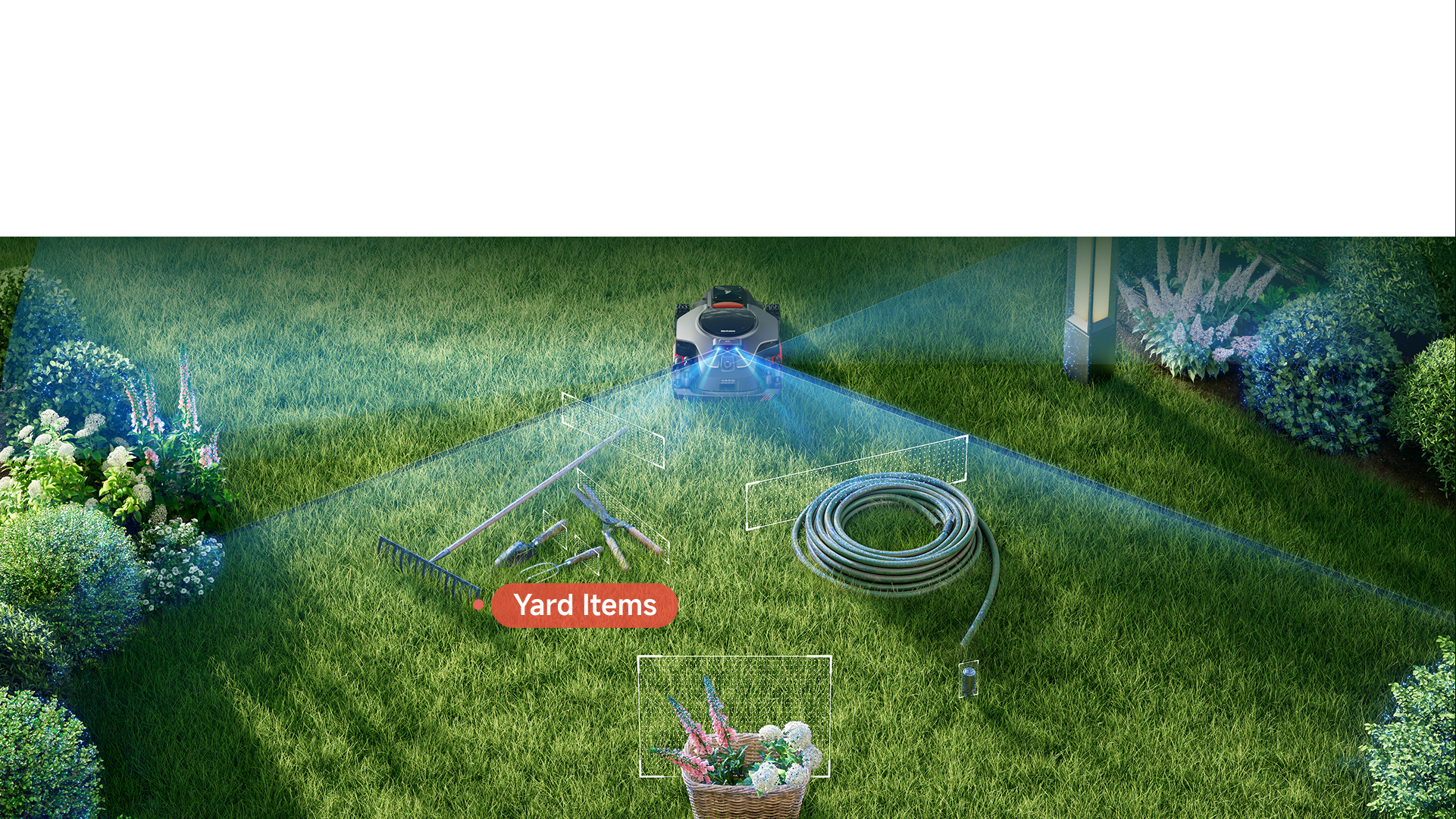

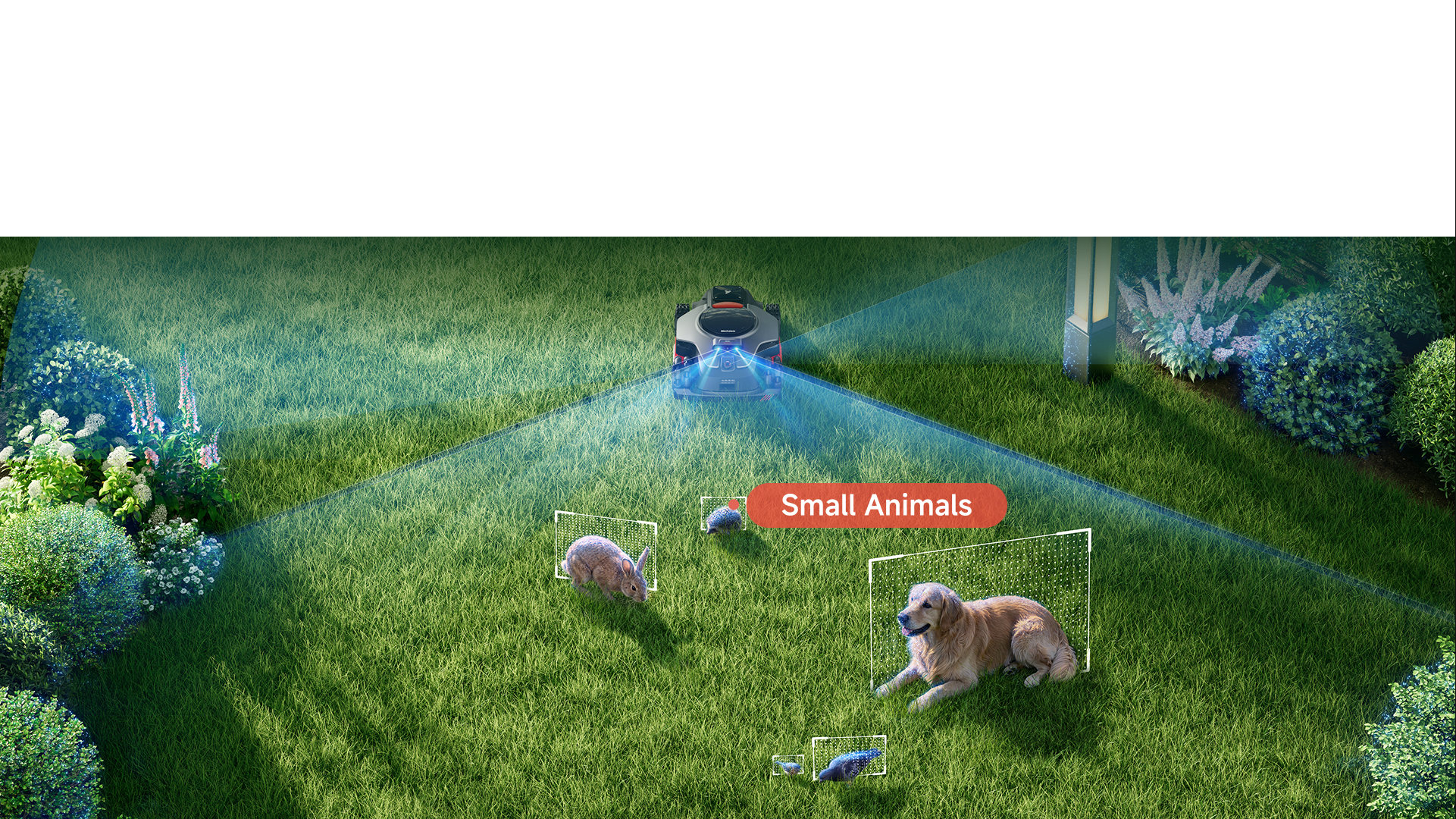

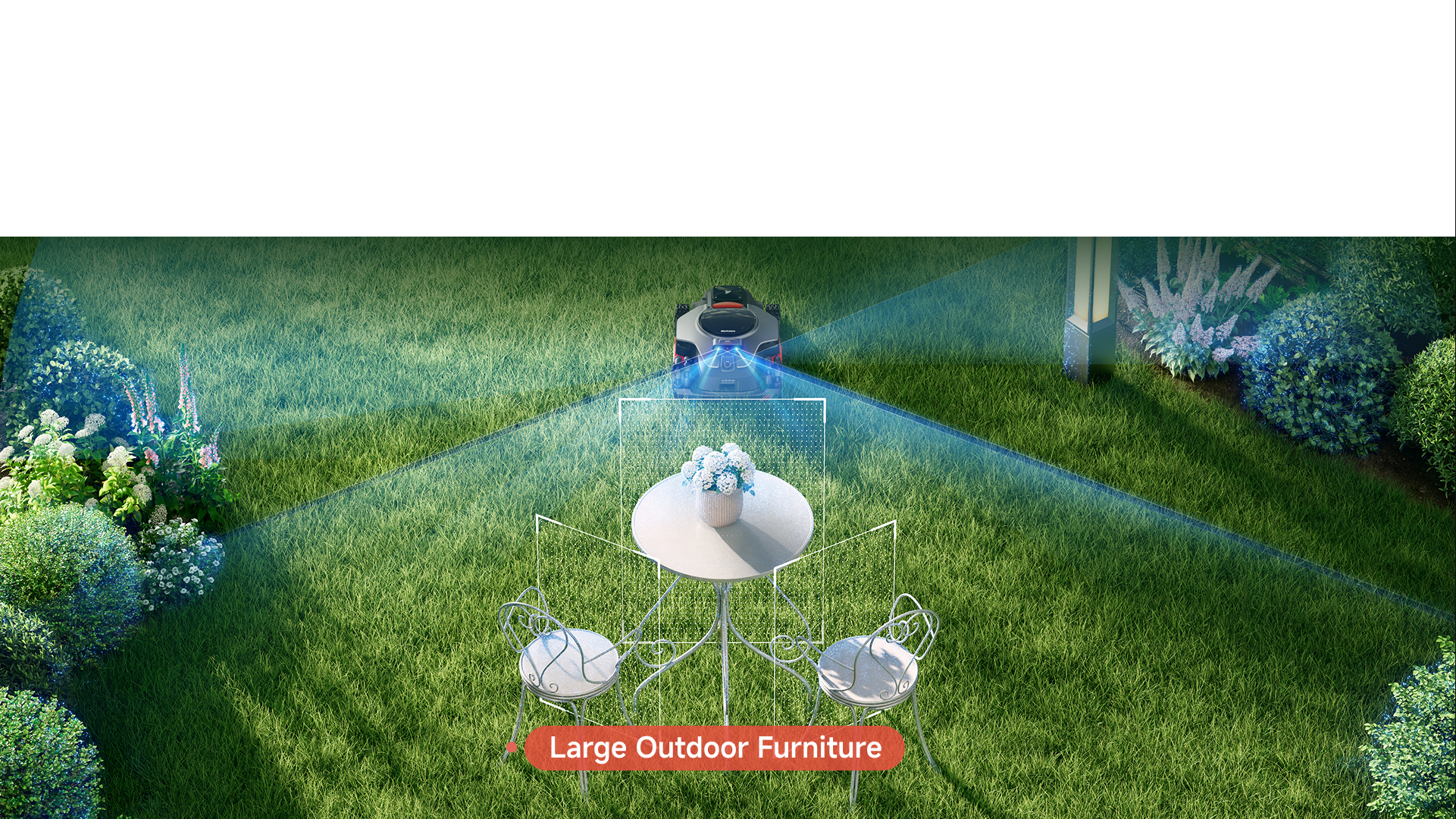

Leveraging 360° LiDAR and AI stereo vision, the mower detects and avoids over 300* types of objects. It can approach obstacles to within 10cm*, enabling fast, precise avoidance.

Intelligent Obstacle Avoidance

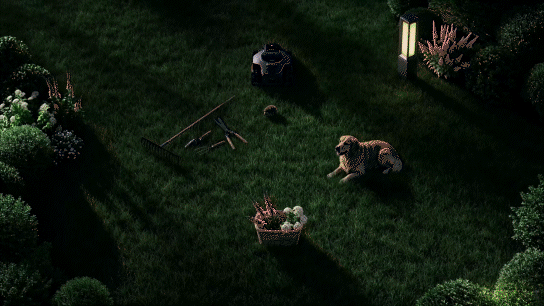

Built-in supplementary lighting supports AI vision, allowing it to detect obstacles even in complete darkness.

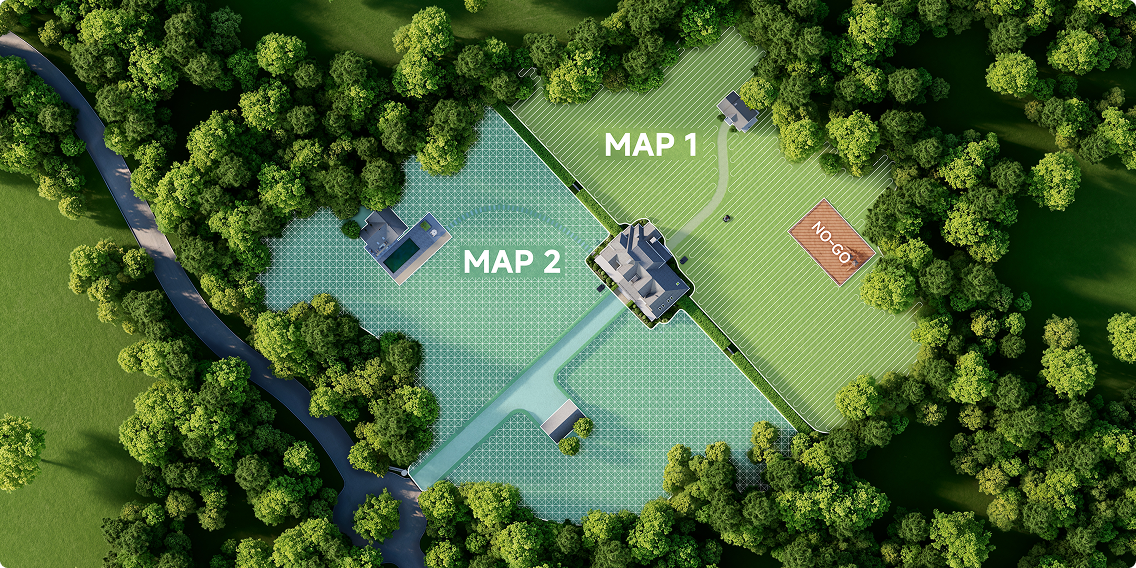

Supports two independent maps* for separate lawn areas. Users can customise mowing zones, no-go areas, height settings, and pathways within the app. The mower maintains stable and consistent performance across both mapped areas.

Intelligent Lawn ManagementDual Maps & Multi-Zones

More Features

*The product appearance, structure, color, function and other details presented in the promotional materials are for illustration purposes only and may not be an exact representation of the product. Please refer to the actual product for accurate information.

*All data is based on our in-house or third-party labs. Actual performance may vary depending on environmental factors and usage.

*Edge trimming distance remains ≥3cm. When the cutting discs are offset, the distance between the discs and the edge is 3cm. Please follow the in-app instructions for detailed operation. Data based on NexLawn lab tests. Actual performance may vary.

*Rides directly: Applies only to boundaries without height differences. Ensure the mower path is level with the lawn and free of steps or gaps for smoother performance.

*10cm refers to the minimum adjustable obstacle avoidance distance available in the NexLawn App.

*Two independent maps: For convenient dual map mode, NexLawn recommends purchasing an additional base station.

Package List

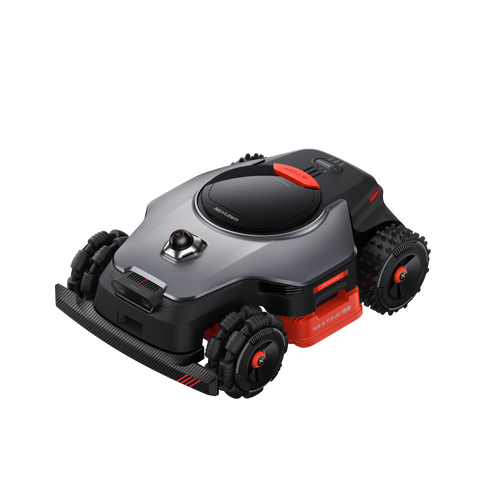

The Robot x 1

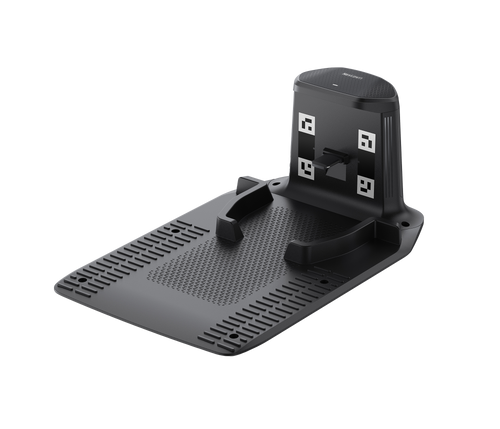

Baseplate / Charging Tower x 1

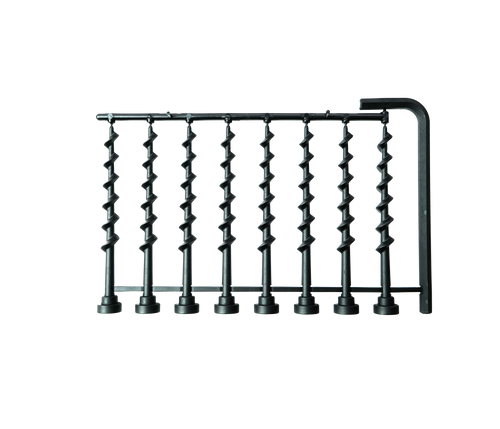

Ground Screws x8
Hex Key x1

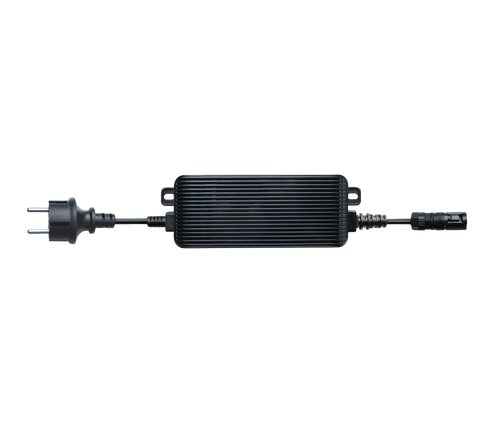

Power Supply x1

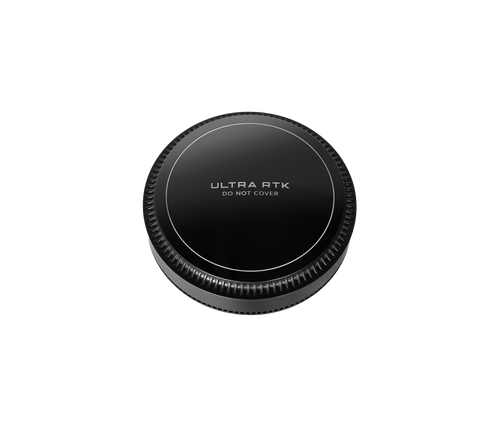

RTK Reference Station x1

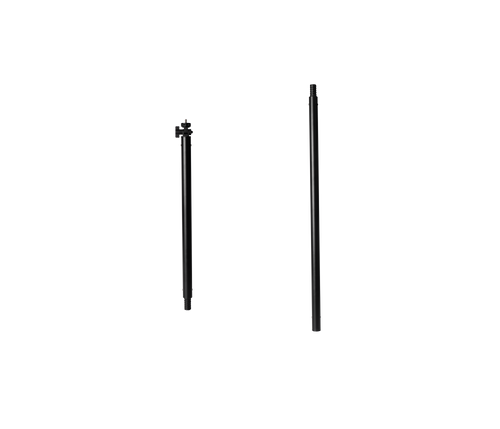

Mouting Pole x2

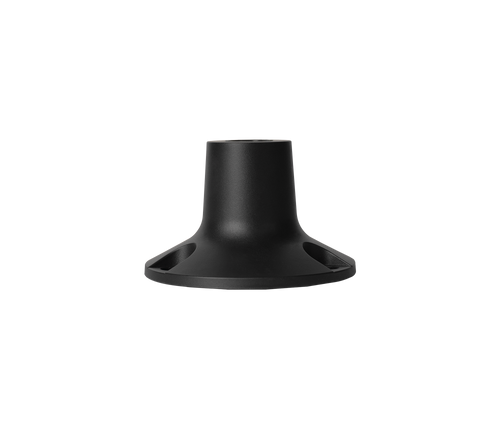

Mounting Pole Base x1

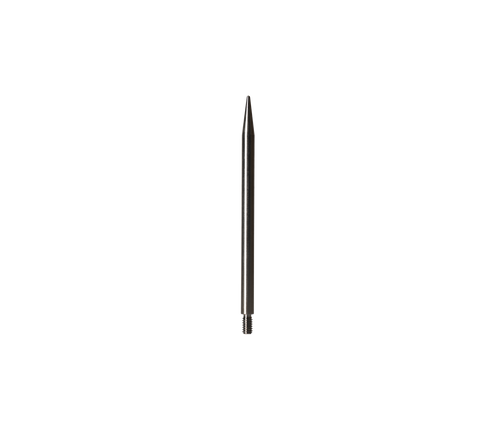

Ground Spike x1

Lint-free Cloth x1

User Manual x1

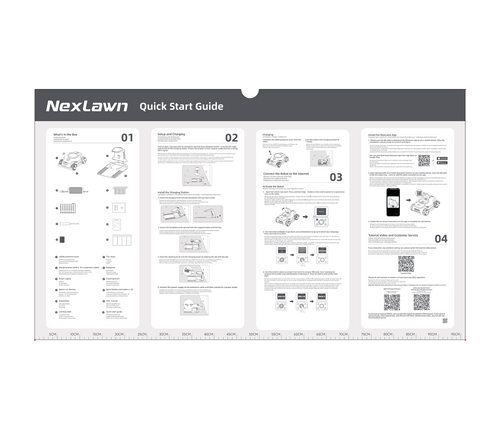

Quick Start Guide x1

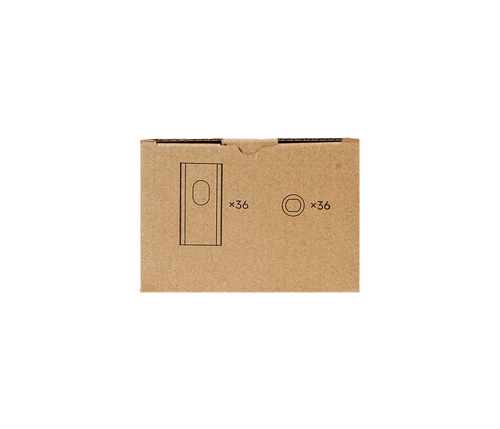

Spare Blades and Holders x36

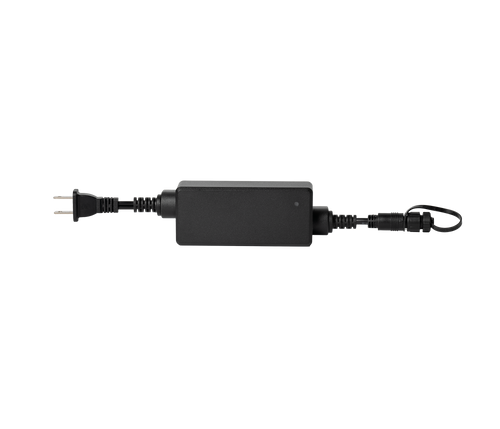

Power Supply for RTK Reference Station x1

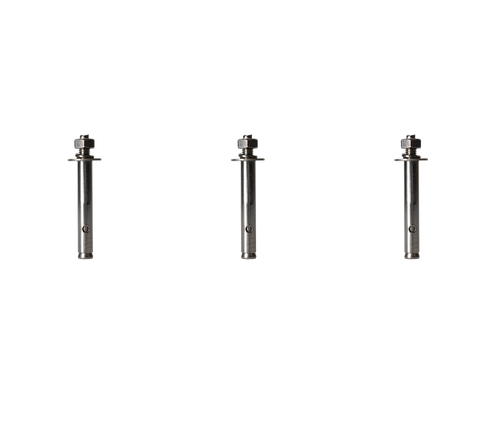

Expansion Bolts ×3

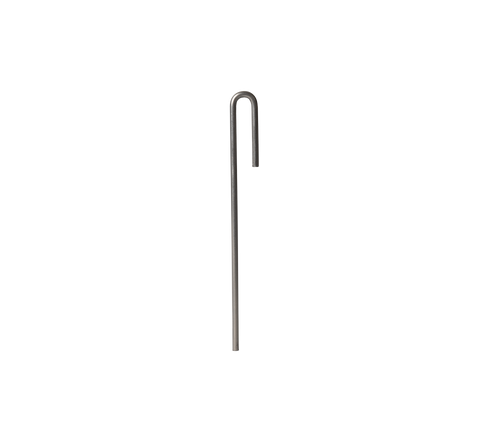

Cable Peg x1

Learn More >

SPECIFICATION

	NAVIA 5500 AWD
Working Area Capacity	5,500m²
Mapping System	Remote Control + AI Auto Mapping
Positioning & Navigation	NexNav™ (NRTK* + Stereo Vision + 360° LiDAR)
Cutting Width	Dual Discs, 40cm
Drive System	All-Wheel Drive (4 Hub Motors + Suspension)
Off-Road Wheels	Y
Max. Slope Performance	80% (38.6°)
Max. Vertical Crossing	6cm
Edge Trimming	NexTrim™: <3cm
Cutting Height	3-10cm, Electronic
Battery Voltage	36V
Battery Capacity	10Ah
Battery Energy	324Wh
Mowing Time per Charge	150-180min
Charging Current	5A
Charging Time	120min
Anti-Theft	Real-Time Tracking, Off-Map Alarm, Lift-Up Alerts, AirTag Storage***
Link Services	Y (5-year free)
Waterproof	IPX6

*Standard with 5-year free service included.

**Standard with free Link Services included. Free usage period varies by model.

***An AirTag itself is available for purchase from the Apple Store.
